HD series handheld thermometers allow easy temperature measurement.
These general-purpose thermometers can be used for on-site temperature measurement and various other applications.

*High accuracy ±0.2°C(at 0°C)
Free test report included
*Accurate temperature measurement is available under rapid changes in environmental temperature.
*Use of the same materials as thermocouples into an input part.
*Integration of reference junction and reference junction compensator.
*Waterproof specifications : Equivalent to IPX5(HD-11*0,12*0,14*0,1650,1750)
*Made in japan
*Large easy-to-read LCD display.
*Easy operation
*Low power consumption.
Capable of 300 hours of continuous operation(HD-11*0,12*0,14*0,1650,1750)
*Various probes available(sold separately)
*Memory function(HD-15*0)
*capable of storing up to 9999 data
*Time interval selectable(9type)
*Manual measurement available
*The playback function allows you to check data stored in memory.
*Data stored in memory can be transmitted to a personal computer by the software AMS-100.
*CE Marking

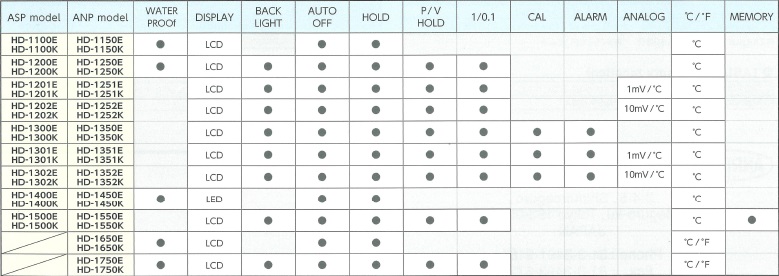

Specifications of HD-1000 series

List of specifications

Model			HD-1100	HD-1200	HD-1201	HD-1202	HD-1300	HD-1301	HD-1302	HD-1400	HD-1500
Display			LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LED	LCD with Backlight
Waterproof specifications			IPX5	IPX5	-	-	-	-	-	IPX5	-
Input connector			ASP
Input type			Thermocouple Input: Type E, K　(Not switchable)
Channel			1ch
Signal source resistance			MAX.500ohm
Measurement Range	1°C Resolution	E	-200～800°C
		K	-200～1370°C
	0.1°C Resolution	E	-104.9～504.9°C(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
		K	-104.9～504.9°C(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
Measurement Accuracy	1°C Resolution	0°C~	±(0.1% of reading +1°C)
		~0°C	±(0.5% of reading +1°C)
	0.1°C Resolution	0°C~	±(0.05% of reading + 0.2°C)
		~0°C	±0.5°C
Reference junction compensation accuracy			±0.2°C at 25°C±10°C
Temperature Coefficient			±0.01% of F/S per °C (F/S : full scale)
Operation Environment			0 to 40°C, 0 to 80%RH (Non condensing) 32 to 104°F, 0 to 80%RH (Non condensing)
Storage Environment			-20 to 50°C, 0 to 85%RH (Non condensing) -4 to 122°F, 0 to 85%RH (Non condensing)
Battery life			300h	300h	150h	150h	300h	150h	150h	150h	150h
Power supply(Dry battery)			4 AA Alkali Batteries
Power supply(AC power)			-	-	AC-Adaptor (Option)					-	AC-Adaptor (Option)
Sampling rate			approx.300ms								approx. 300ms *1
Linearlizer			Digital Linearizer method (Compliant with IEC 60584-1 (2013))
Dimensions(mm)			approx. 76(w)×167(H)×36(D)  [Protruded parts excluded]
Weight			approx. 350g [Include Batteries]
Supplied accessories			Manual,Test report,Soft case, Hand strap,4 AA Alkaline batteries
Optional accessories			-	-	Analog output Cable		Alarm output Cable			-	Communi cation Cable
							-	Analog output Cable			Software (AMS-100)
Analog Output			-	-	1mV/°C (table1)	10mV/°C (table1)	-	1mV/°C (table1)	10mV/°C (table1)	-	-
Alarm Output			-	-	-	-	(table2)	(table2)	(table2)	-	-
Memory function			-	-	-	-	-	-	-	-	(table3)
Compatible standards			CE Marking, RoHS

*1 Sampling period will be a user-selected time interval when time interval is specified at 10 seconds or more.

*2 Details of typeJ,T,R

Model			HD-1150 HD-1650	HD-1250 HD-1750	HD-1251	HD-1252	HD-1350	HD-1351	HD-1352	HD-1450	HD-1550
Display			LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LCD with Backlight	LED	LCD with Backlight
Waterproof specifications			IPX5	IPX5	-	-	-	-	-	IPX5	-
Input connector			ANP
Input type			Thermocouple Input: Type E, K　(Not switchable)
Channel			1ch
Signal source resistance			MAX.500ohm
Measurement Range	1°C Resolution	E	-200～800°C
		K	-200～1370°C
	0.1°C Resolution	E	-104.9～504.9°C(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
		K	-104.9～504.9°C(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
Measurement Accuracy	1°C Resolution	0°C~	±(0.1% of reading +1°C)
		~0°C	±(0.5% of reading +1°C)
	0.1°C Resolution	0°C~	±(0.05% of reading + 0.2°C)
		~0°C	±0.5°C
Reference junction compensation accuracy			±0.2°C at 25°C±10°C
Temperature Coefficient			±0.01% of F/S per °C (F/S : full scale)
Operation Environment			0 to 40°C, 0 to 80%RH (Non condensing) 32 to 104°F, 0 to 80%RH (Non condensing)
Storage Environment			-20 to 50°C, 0 to 85%RH (Non condensing) -4 to 122°F, 0 to 85%RH (Non condensing)
Battery life			300h	300h	150h	150h	300h	150h	150h	150h	150h
Power supply(Dry battery)			4 AA Alkali Batteries
Power supply(AC power)			-	-	AC-Adaptor (Option)					-	AC-Adaptor (Option)
Sampling rate			approx.300ms								approx. 300ms *1
Linearlizer			Digital Linearizer method (Compliant with IEC 60584-1 (2013))
Dimensions(mm)			approx. 76(w)×167(H)×36(D)  [Protruded parts excluded]
Weight			approx. 350g [Include Batteries]
Supplied accessories			Manual,Test report,Soft case, Hand strap,4 AA Alkaline batteries
Optional accessories			-	-	Analog output Cable		Alarm output Cable			-	Communi cation Cable
							-	Analog output Cable			Software (AMS-100)
Analog Output			-	-	1mV/°C (table1)	10mV/°C (table1)	-	1mV/°C (table1)	10mV/°C (table1)	-	-
Alarm Output			-	-	-	-	(table2)	(table2)	(table2)	-	-
Memory function			-	-	-	-	-	-	-	-	(table3)
Compatible standards			CE Marking, RoHS

*1 Sampling period will be a user-selected time interval when time interval is specified at 10 seconds or more.

*2 Details of typeJ,T,R

Table1 Analog Output (HD-1201,HD-1202,HD-1301,HD-1302,HD-1251,HD-1252,HD-1351,HD-1352)

	HD-1201 HD-1251	HD-1301 HD-1351	HD-1202 HD-1252	HD-1302 HD-1352
Rate	1mV/°C		10mV/°C
Range	All range at 1°C resolution		All range at 0.1°C resolution
Resistance	100ohm
Accuracy	± (0.15% of F/S + 1mV) at 25°C±5°C± (0.15% of F/S + 1mV) ±(0.01% of F/S) except 25°C±5°C

Table2 Alarm Output (HD-1300,HD-1301,HD-1302,HD-1350,HD-1351,HD-1352)

Output Pattern	Upper Limit	Lower Limit
More than upper limit	H(5V)	L(0V)
Between upper and lower limit	L(0V)	L(0V)
Less than lower limit	L(0V)	H(5V)

* Signal current of up to 5mA can be taken out.

Table3 Memory function (HD-1500,HD-1550)

Time interval	second:1, 5, 10, 30 minutes: 1, 5, 10, 30, 60 and manual memory
Memory capacity	9999data
